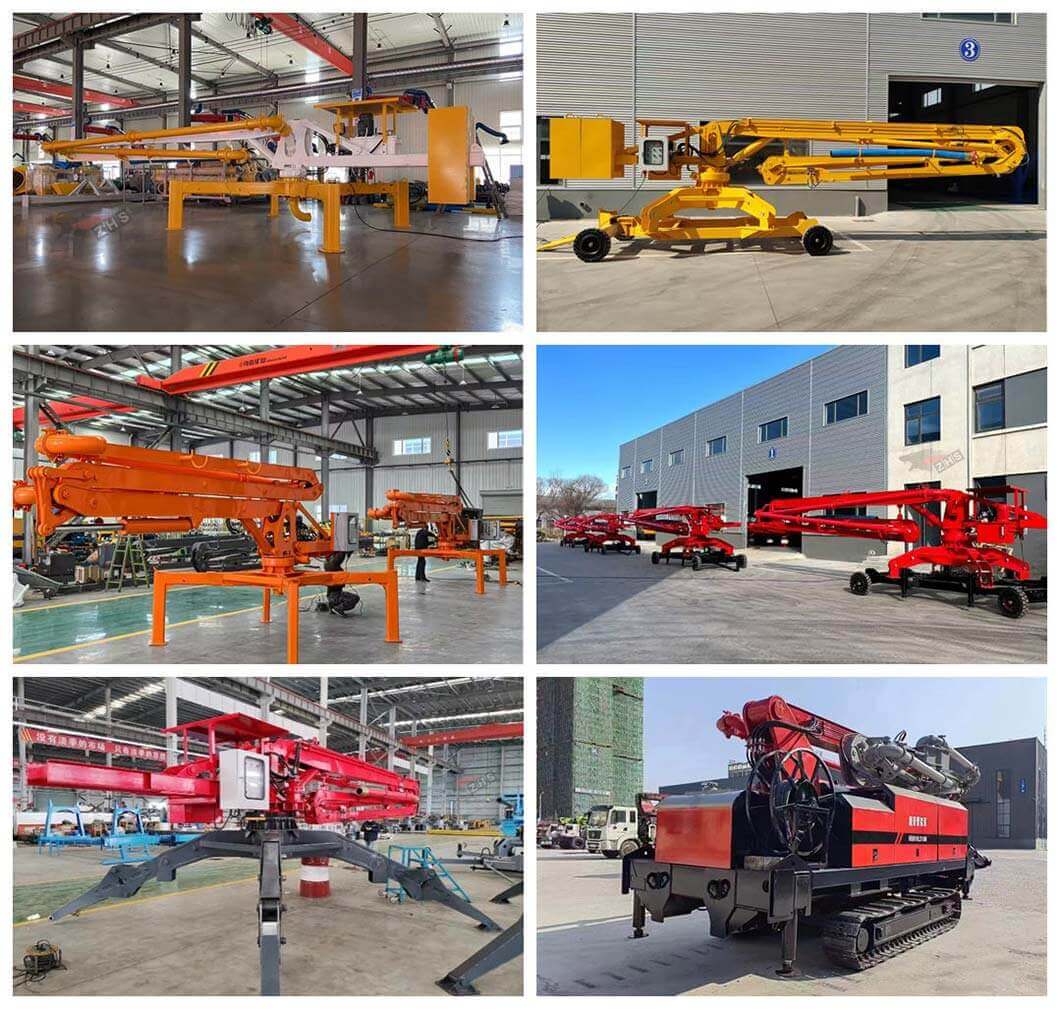

Ⅰ- ZHS Spider Concrete Placing Boom – Efficient & Versatile Concrete Placement

The ZHS Spider Concrete Placing Boom is a high-performance auxiliary equipment designed to work with concrete pumps, enabling fast, precise, and flexible concrete delivery. It extends the pumping range, improves wall pouring efficiency, and optimizes concrete placement like a mechanical arm.

Key Features:

✔ Multiple Folding Designs – "R," "Z," and "M" folding arms for compact storage and flexible operation. Made from high-strength steel for durability and lightweight performance. ✔ Hydraulic-Driven & 360° Rotation – Ensures smooth movement and a wide working range. ✔ Dual Control Modes – Wireless remote and cable remote control for easy operation. ✔ Adaptable Climbing Frames – Compatible with floor frames or wall (lift/shaft) frames for various job site needs. ✔ Premium Components – Equipped with world-renowned electronic parts for reliable performance.

Ideal for high-rise buildings, tunnels, and complex structures, the ZHS Spider Boom enhances efficiency and reduces labor costs. Custom solutions available!

Ⅱ - ZHS Spider Concrete Placing Boom – Key Advatages:

1. Enhanced Efficiency & Cost Savings

• Dramatically reduces labor intensity compared to manual pouring

• Accelerates placement speed by up to 3x, shortening project timelines

• Expands working range while improving operational flexibility

2. Superior Concrete Quality Preservation

• Eliminates water loss common in hopper-based transportation

• Maintains optimal concrete consistency throughout placement

3. Vibration-Free Operation

• Zero contact with formwork prevents structural vibrations

• Protects templates from damage during pouring

4. Precision Placement Technology

• Enables controlled hierarchical and segmented pouring

• Ensures uniform formwork pressure distribution

• Maintains precise structural dimensions

5. Streamlined On-Site Operations

• Eliminates repetitive pipe connections/disconnections

• Reduces required platform personnel by 50%

• Minimizes wear on stiffened plates and ancillary equipment

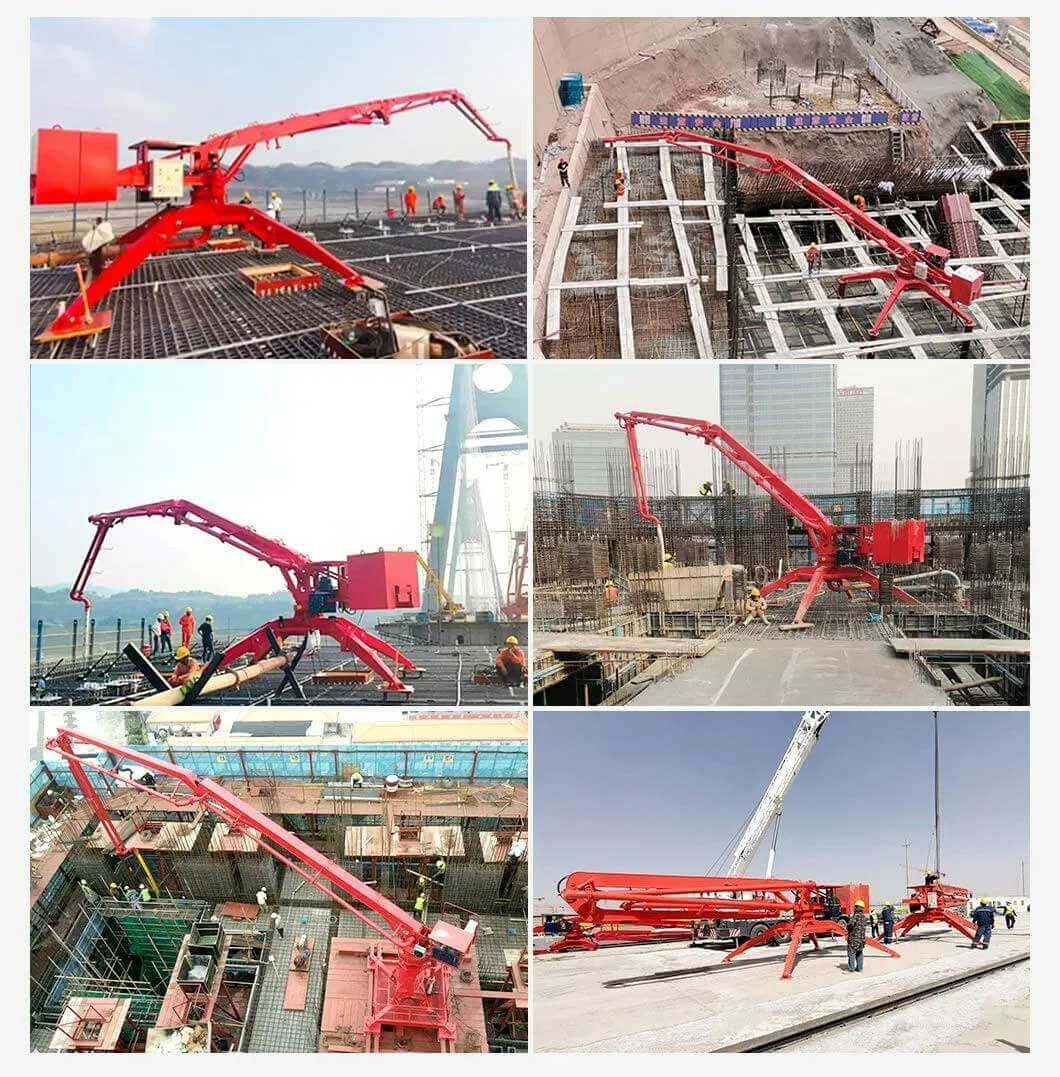

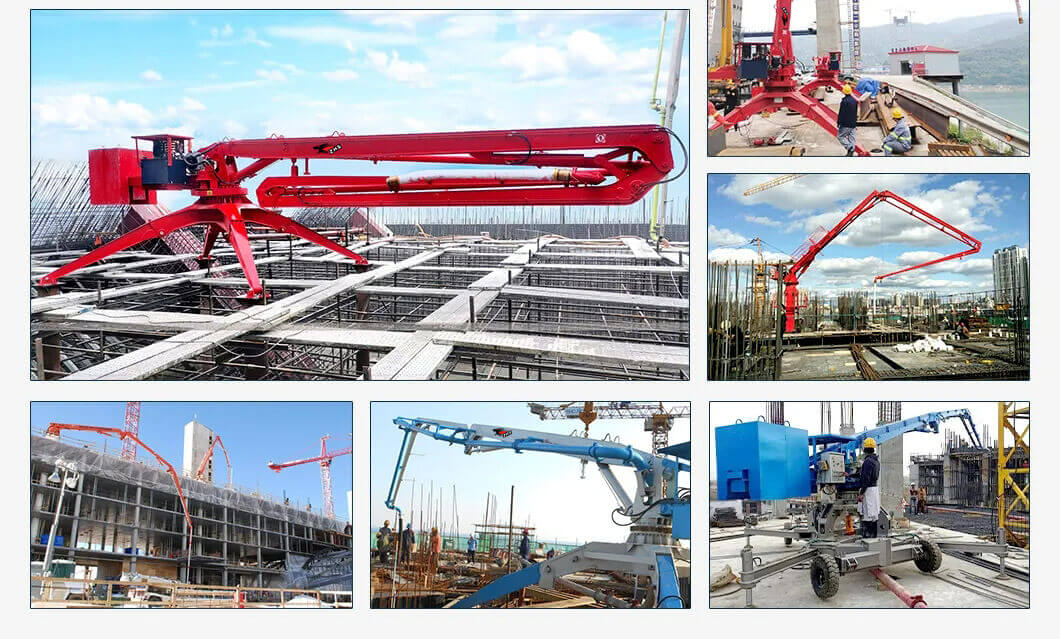

Ⅲ- Application Cases:

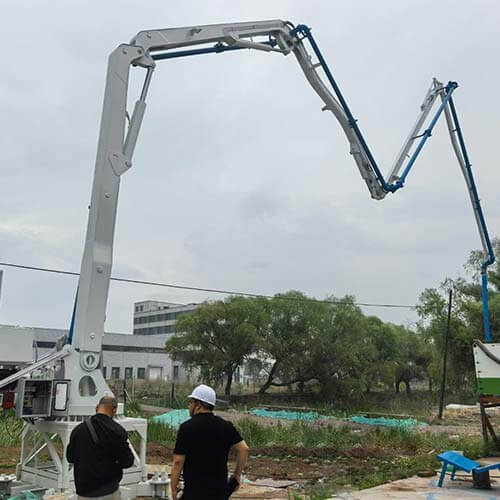

Ⅳ- Another Application Site:

Ⅴ- Specification:

ZHS Spider Concrete Placing Boom Packing Infromation:
